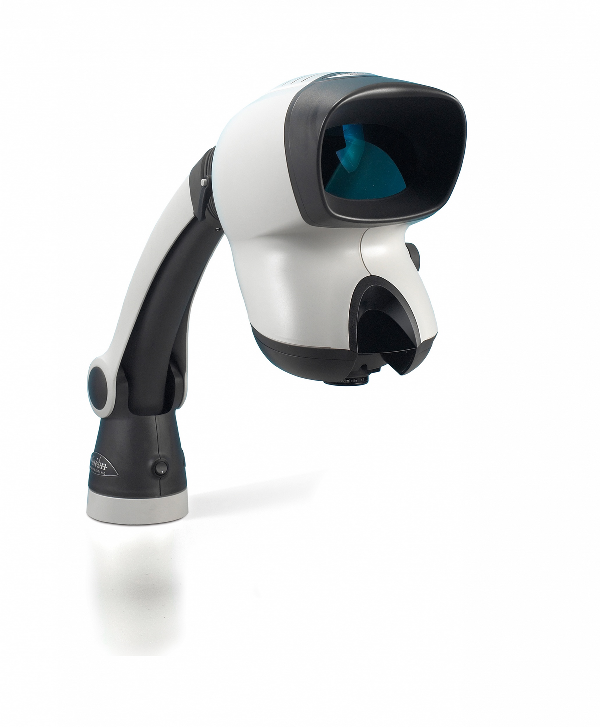

Mantis Elite is an ergonomic eyepieceless stereo microscope, offering superior optical performance with magnification options up to 20x, making it a perfect alternative to more traditional inspection stereo microscopes.

• 2x - 20x magnification


• Long working distance and large field of view


• Superior hand-eye coordination for inspection and manipulation tasks

Mantis Elite is a patented 'eyepieceless' stereo microscope, offering truly superb 3-D imaging and unparalleled levels of comfort, reducing operator fatigue and increasing quality and productivity.

Winner of numerous industry design awards, the outstanding ergonomic design is unrivalled by other inspection stereo viewers.

With magnification options up to 20x, Mantis Elite is the high performance stereo viewer of choice for a wide range of precision tasks requiring magnification

Highlights

• 2x – 20x magnification options (2 in quick change turret)
• Superior ergonomics for fatigue free viewing and increased quality/productivity
• Superb hand-eye co-ordination for inspection and manipulation tasks
• Long working distance and large field of view
• True color, LED illumination providing up to 10,000 hours of shadow free viewing
• Choice of stands to suit numerous applications

Fatigue-Free Stereo Viewing
Patented optical technology removes the need for restrictive eyepieces of a conventional microscope, allowing operators freedom of head movement, providing superior ergonomics and hand-eye coordination, plus the ability to wear glasses, if required.

Mantis Elite is a perfect alternative to traditional stereo microscopes, in use throughout the world for a wide range of inspection, preparation and manipulation tasks requiring hand-to-eye co-ordination.

Stand Options

• Universal Stand: Mantis Elite, with counterbalanced universal stand, for flexibility and ease of use.
• Bench Stand: High stability bench stand with integral focus and dimmable substage illumination.
• Articulated Arm: Designed specifically for applications requiring extended reach, without compromising stability. Maximum reach of 34.65" (800mm), with optional Secondary Link.
• Floor Stand: The floor stand (for use with articulated arm) is specifically designed for stereo inspection where subjects are immobile or require a standing position. Mobile and highly stable, the floor stand provides a versatile option for Mantis operators.

Lens Options
Mantis Elite houses 2 objectives in a quick rotate turret, so you can inspect at lower magnification, then switch to higher magnification for detail work.

Objective Lenses: 2X

• Working Distance: 6.30" (160mm)
• Field of View: 2.24" (57.0mm)

Objective Lenses: 4X

• Working Distance: 3.78" (96mm)
• Field of View: 1.34" (34.0mm)

Objective Lenses: 6X

• Working Distance: 2.68" (68mm)
• Field of View: 0.91" (23.0mm)

Objective Lenses: 8X

• Working Distance: 2.32" (59mm)
• Field of View: 0.67" (17.0mm)

Objective Lenses: 10X

• Working Distance: 2.13" (54mm)
• Field of View: 0.53" (13.5mm)

Objective Lenses: 15X

• Working Distance: 1.57" (40mm)
• Field of View: 0.35" (8.8mm)

Objective Lenses: 20X

• Working Distance: 1.14" (29mm)
• Field of View: 0.26" (6.5mm)

Objective Lenses: 6X SLWD

• Working Distance: 4.41" (112mm)
• Field of View: 0.79" (20.0mm)
• *Cannot be used together with 2x or 20x objective lens
